390-053

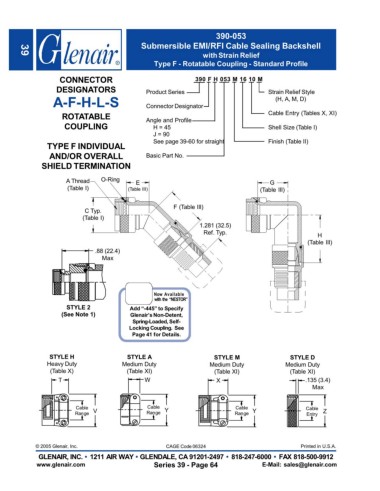

Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type F - Rotatable Coupling - Standard Profile

CONNECTOR 390 F H 053 M 16 10 M
DESIGNATORS Product Series Strain Relief Style
A-F-H-L-S Connector Designator (H, A, M, D)

ROTATABLE Cable Entry (Tables X, XI)
COUPLING Angle and Profile Shell Size (Table I)
H = 45°
J = 90°
TYPE F INDIVIDUAL See page 39-60 for straight Finish (Table II)
AND/OR OVERALL Basic Part No.
SHIELD TERMINATION

A Thread O-Ring E G
(T I) (Table III) (Tab III)

(Tab III)
C Typ.
(T I)
1.281 (32.5)
Ref. Typ. H
(Tab III)
.88 (22.4)
Max

Now Available
with the ´NESTORµ
STYLE 2 Add “-445” to Specify
(See Note 1) Glenair’s Non-Detent,
Spring-Load Self-
Locking Coupling. See
Page 41 for Details.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable
Range Range Range Entry Z
