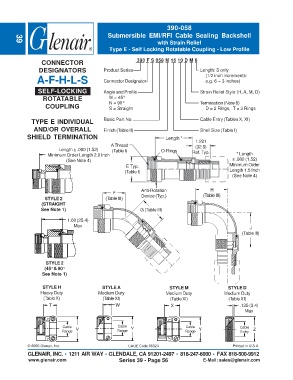

Page 318 - Circular Connector Backshells and Accessories

390-058
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type E - Self Locking Rotatable Coupling - Low Profile

CONNECTOR 390 F S 058 M 16 10 D M 6
DESIGNATORS Product Series Length: S only
A-F-H-L-S Connector Designator (1/2 inch increments:
e.g. 6 = 3 inches)

SELF-LOCKING Angle and Profile Strain Relief Style (H, A, M, D)
ROTATABLE M = 45°
COUPLING N = 90° Termination (Note 6)
S = Straight
D = 2 Rings, T = 3 Rings
TYPE E INDIVIDUAL Basic Part No. Cable Entry (Tables X, XI)
AND/OR OVERALL Finish (Table II) Shell Size (Table I)
SHIELD TERMINATION Length *
1.281
A Thread (32.5)
Length ± .060 (1.52) (Table I) O-Rings
Minimum Order Length 2.0 Inch Ref. Typ. * Length
(See Note 4) ± .060 (1.52)
E Typ. Minimum Order
(Table I) Length 1.5 Inch
(See Note 4)

Anti-Rotation H
F (Table III)
STYLE 2 (Table III) Device (Typ.)
(STRAIGHT
See Note 1) G (Table III)

1.00 (25.4)
Max J
(Table III)

STYLE 2
(45° & 90°
See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable Z
Range Range Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 56 E-Mail: sales@glenair.com
