High Current Sealed Connection Systems

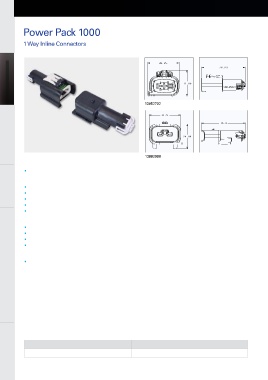

     HV Auxiliary Modules  Power Pack 1000







           1 Way Inline Connectors
  HV Auxiliary Modules


     HV Power Conversion HV Power Conversion HV Power Conversion









                                                                 13952702

     Chargers & Charging Cables












            Application                                          13882980
            •  High current wiring harness inline
     Charging Inlets  Description

            •  Sealed connection system
            •  Silver-plated, multi-contact terminal system
            •  Cable range: 6 mm  to 25 mm
            •  One key/index   2      2
            •  Capable of additional indexes
     Internal Battery Connections  •  Current capacity: 145A at 85°C
            Performance

            •  Voltage: 12V
            •  Temperature range: -40°C to +125°C
            •  Sealing protection: IP67, IP6K9K

            Availability
            •  Call for availability



     HV Electrical Centers












     HV/LV Wiring Assemblies  44       Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change


                                                                                  Male 1 Way
                              Female 1 Way

                                                                                   13882980
                                13952702

                     without notice. To verify product information, please contact a Delphi representative.
