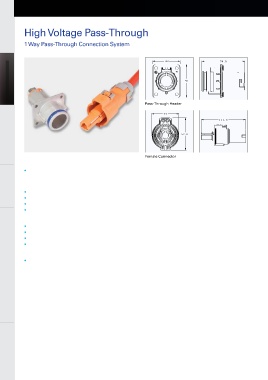

Shielded Ring Terminal Pass-Through Systems
     HV Auxiliary Modules  High Voltage Pass-Through







            1 Way Pass-Through Connection System
  HV Auxiliary Modules


     HV Power Conversion HV Power Conversion HV Power Conversion









                                                                 Pass-Through Header

     Chargers & Charging Cables












            Application                                          Female Connector
            •  High voltage/high vibration connections for motors or
     Charging Inlets  Description
              power electronics

            •  1 Way sealed and shielded
            •  Pluggable design -- easy to plug in and pull out
            •  Cable range: 50 mm  to 70 mm 2
                              2
            •  One key/index
     Internal Battery Connections  •  Current capacity: 350A at 85°C
            Performance

            •  Voltage: 600V
            •  Temperature range: -40°C to +125°C
            •  Sealing protection: IP67, IP6K9K

            Available Options
            •  Call for availability



     HV Electrical Centers












     HV/LV Wiring Assemblies  42  Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change









                     without notice. To verify product information, please contact a Delphi representative.
