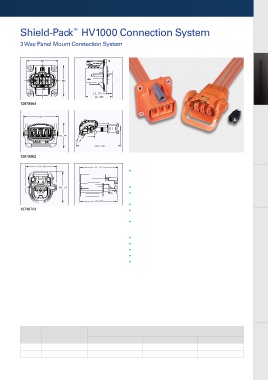

Shield-Pack  HV1000 Connection System                                                                     HV Auxiliary Modules
                                 ™

          3 Way Panel Mount Connection System
                                                                                                                    HV Auxiliary Modules












                                                                                                                    HV Power Conversion
                                                                                                                    HV Power Conversion
          13879064                                                                                                  HV Power Conversion












          13879062                                                                                                  Chargers & Charging Cables
                                                          Application
                                                          •  High voltage/high current devices (inverters)
                                                          Description
                                                          •  High voltage panel mount connection system             Charging Inlets
                                                          •  Three high voltage power circuits (Power Pack 1000
                                                            terminal)
                                                          •  HVIL with five-second time delay
          13738743                                        •  Cable range: 16 mm  to 25 mm  power circuit; 0.5 mm
                                                                             2
                                                                                                         2
                                                                                      2
                                                            HVIL circuit
                                                          •  Two keys/indexes
                                                          Performance
                                                          •  Current capacity: 145A at 85°C
                                                          •  Voltage: 600V                                          Internal Battery Connections
                                                          •  Temperature range: -40°C to +125°C
                                                          •  Sealing protection: IP67, IP6K9K
                                                          •  Electrical protection: IP2XB female connector only


















             Key/                                                  Mating Information                               HV Electrical Centers
               Index   Header Connector    Mating Device Detail     Female Connector        HVIL Connector

              101         13879064              13879066                13879062               13738743             HV/LV Wiring Assemblies
              102         13879065              13879067                13879063               13738744

          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   39
          without notice. To verify product information, please contact a Delphi representative.
