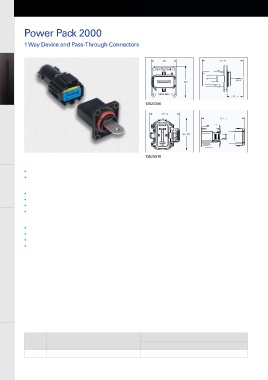

High Current Sealed Connection Systems
HV Auxiliary Modules Power Pack 2000

1 Way Device and Pass-Through Connectors
HV Auxiliary Modules

HV Power Conversion HV Power Conversion HV Power Conversion

13520386

Chargers & Charging Cables

Application 13520916
• Device connections up to 250A
Charging Inlets Description
• Sealed pass-through header

• Sealed system
• Silver-plated, multi-contact terminal system
• Cable range: 19 mm to 62 mm 2
2
• One key/index
Internal Battery Connections • Current capacity: 250A at 85°C
Performance

• Voltage: 12V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K

HV Electrical Centers

HV/LV Wiring Assemblies 48 Key/ Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
Mating Information

Header
Index
Female 1 Way
13520386
Index 0
13520916
without notice. To verify product information, please contact a Delphi representative.
