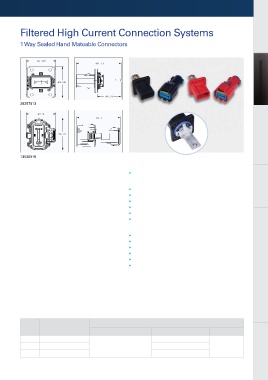

Filtered High Current Connection Systems                                                                  HV Auxiliary Modules


          1 Way Sealed Hand Mateable Connectors
                                                                                                                    HV Auxiliary Modules












                                                                                                                    HV Power Conversion
                                                                                                                    HV Power Conversion
          28257913                                                                                                  HV Power Conversion












          13520916                                                                                                  Chargers & Charging Cables
                                                          Application
                                                          •  High current filtered pass-through header

                                                          Description
                                                          •  Panel mount to device with bore seal and ground to case  Charging Inlets
                                                          •  Pluggable mating Power Pack 2000 connector
                                                          •  Silver-plated multi-contact terminal system
                                                          •  M5 captive nut for internal electrical attachment
                                                          •  Filter capacitance 60µF, 25V
                                                          •  Three keys/indexes

                                                          Performance
                                                          •  Current capacity: 250A at 85°C
                                                          •  Voltage: 14V                                           Internal Battery Connections
                                                          •  Temperature range: -40°C to +105°C
                                                          •  Insertion loss: 40dB at 200kHz
                                                          •  Sealing protection: IP67, IP6K9K
                                                          •  Electrical protection: IP2XB female connector only














             Key/                                                  Mating Information                               HV Electrical Centers
             Index    Header Connector        Mating Device Detail       PP2000 Connector         Ferrule
              101         28257913                                            13520916
              103         28257912            See print for information       13817280            28105377

              104         28259497                                            13817281                              HV/LV Wiring Assemblies


          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   49
          without notice. To verify product information, please contact a Delphi representative.
