P. 47

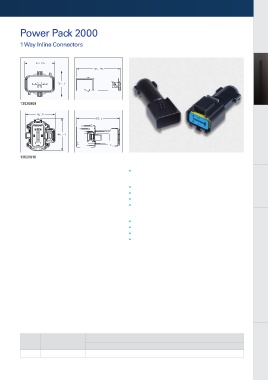

Power Pack 2000                                                                                           HV Auxiliary Modules


          1 Way Inline Connectors
                                                                                                                    HV Auxiliary Modules












                                                                                                                    HV Power Conversion
                                                                                                                    HV Power Conversion
          13520909                                                                                                  HV Power Conversion












          13520916                                                                                                  Chargers & Charging Cables
                                                          Application
                                                          •  Inline connections up to 250A
                                                          Description
                                                          •  Sealed system                                          Charging Inlets
                                                          •  Silver-plated, multi-contact terminal system
                                                          •  Cable range: 19 mm  to 62 mm 2
                                                                             2
                                                          •  One key/index

                                                          Performance
                                                          •  Current capacity: 250A at 85°C
                                                          •  Voltage: 12V
                                                          •  Temperature range: -40°C to +125°C
                                                          •  Sealing protection: IP67, IP6K9K                       Internal Battery Connections


























             Key/                                              Mating Information                                   HV Electrical Centers
               Index    Male 1 Way                                Female 1 Way
             Index 0     13520909                                   13520916                                        HV/LV Wiring Assemblies


          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   47
          without notice. To verify product information, please contact a Delphi representative.
