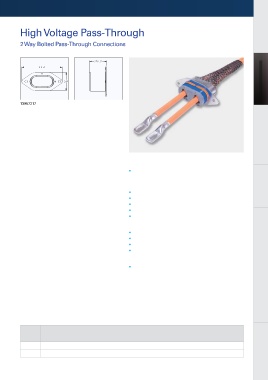

High Voltage Pass-Through                                                                                 HV Auxiliary Modules


          2 Way Bolted Pass-Through Connections
                                                                                                                    HV Auxiliary Modules












                                                                                                                    HV Power Conversion
                                                                                                                    HV Power Conversion
          13957217                                                                                                  HV Power Conversion














                                                          Application                                               Chargers & Charging Cables
                                                          •  High voltage/High vibration connections for motors or
                                                            power electronics

                                                          Description                                               Charging Inlets
                                                          •  2 Way sealed and shielded
                                                          •  Ring terminal bolted to device
                                                          •  Bundle Shield bolted to device case
                                                          •  Cable size: 35 mm 2
                                                          •  Two keys/indexes

                                                          Performance
                                                          •  Continuous current: 180A continuous at 85°C
                                                          •  Voltage: 600V                                          Internal Battery Connections
                                                          •  Temperature range: -40°C to +125°C
                                                          •  Sealing protection: IP67, IP6K9K
                                                          Availability
                                                          •  Call for additional configurations
















              Key/                                                                                                  HV Electrical Centers
             Index                                35 mm  Cable Size
                                                         2
              1                                         13957217
              2                                         13957216                                                    HV/LV Wiring Assemblies


          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   43
          without notice. To verify product information, please contact a Delphi representative.
