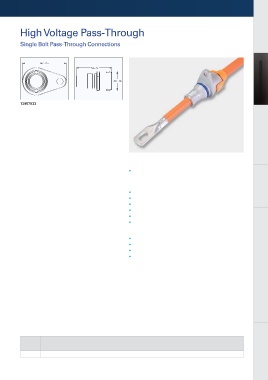

High Voltage Pass-Through                                                                                 HV Auxiliary Modules


          Single Bolt Pass-Through Connections
                                                                                                                    HV Auxiliary Modules












                                                                                                                    HV Power Conversion
                                                                                                                    HV Power Conversion
          13957033                                                                                                  HV Power Conversion














                                                          Application                                               Chargers & Charging Cables
                                                          •  High voltage/high vibration connections for motors or
                                                            power electronics

                                                          Description                                               Charging Inlets
                                                          •  1 Way sealed and shielded
                                                          •  Ring terminal bolted to device
                                                          •  Shield bolted to device case
                                                          •  Cable size: 35 mm 2
                                                          •  One key/index available
                                                          •  Capable of multiple indexes

                                                          Performance
                                                          •  Current capacity: 250A at 85°C                         Internal Battery Connections
                                                          •  Voltage: 600V
                                                          •  Temperature range: -40°C to +125°C
                                                          •  Sealing protection:  IP67, IP6K9K





















              Key/                                                                                                  HV Electrical Centers
             Index                                  35 mm  Cable Size
                                                           2
              1                                           13957033                                                  HV/LV Wiring Assemblies

          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   41
          without notice. To verify product information, please contact a Delphi representative.
