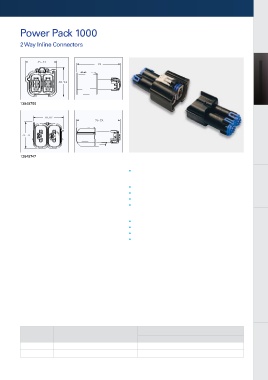

Power Pack 1000                                                                                           HV Auxiliary Modules


          2 Way Inline Connectors
                                                                                                                    HV Auxiliary Modules












                                                                                                                    HV Power Conversion
                                                                                                                    HV Power Conversion
          13849756                                                                                                  HV Power Conversion












          13849747                                                                                                  Chargers & Charging Cables
                                                          Application
                                                          •  High current wiring harness inline
                                                          Description
                                                          •  Sealed connection system                               Charging Inlets
                                                          •  Silver-plated, multi-contact terminal system
                                                          •  Cable range: 6 mm  to 25 mm 2
                                                                            2
                                                          •  Two keys/indexes

                                                          Performance
                                                          •  Current capacity: 145A at 85°C
                                                          •  Voltage: 12V
                                                          •  Temperature range: -40°C to +125°C
                                                          •  Sealing protection: IP67, IP6K9K                       Internal Battery Connections
























               Key/                                                          Mating Information                     HV Electrical Centers
                 Index                Female 2 Way                               Male 2 Way
              Index Right               13849756                                  13849747
              Index Left                13849757                                  13849748                          HV/LV Wiring Assemblies


          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   45
          without notice. To verify product information, please contact a Delphi representative.
