P. 38

High Voltage Shielded/Sealed Connections

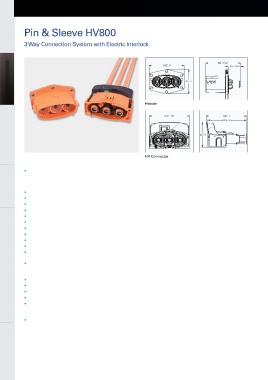

     HV Auxiliary Modules  Pin & Sleeve HV800







            3 Way Connection System with Electric Interlock
  HV Auxiliary Modules


     HV Power Conversion HV Power Conversion HV Power Conversion









                                                                 Header

     Chargers & Charging Cables












            Application                                          HV Connector
            •  High voltage/high current modules: inverter, battery, junction
     Charging Inlets  Description
              box, power electric box

            •  Single wire shielding
            •  Sealing connection system: mated header
            •  Header mount to device with face seal
            •  Unique integrated electric interlock
            •  Two-stage disconnect for safe unmating
     Internal Battery Connections  •  3 HV power circuits (8.0 mm round terminal)  2
            •  Axial Mating Assist System on harness

            •  Flange size: 70 mm x 102 mm
            •  IP2XB Finger proof/touch safe
            •  Modular design for different cable size as module unit
            •  Cable range: 16 to 50 mm  power circuit; 0.5 to 0.75 mm
                                   2
              electric interlock
            •  Three keys/indexes

            Performance
            •  Current capacity: 230A at 70°C
     HV Electrical Centers  •  Temperature range: -40°C to +125°C
            •  Voltage: 750V

            •  Sealing protection: IP67, IPX9K
            •  Electrical protection: IP2XB

             Availability
            •  Call for availability

     HV/LV Wiring Assemblies  38  Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change









                     without notice. To verify product information, please contact a Delphi representative.
