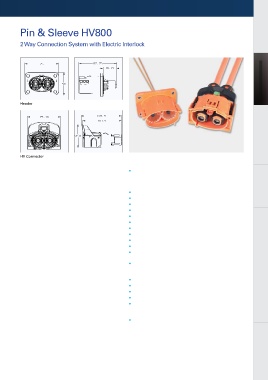

Pin & Sleeve HV800 HV Auxiliary Modules

2 Way Connection System with Electric Interlock
HV Auxiliary Modules

HV Power Conversion
HV Power Conversion
Header HV Power Conversion

HV Connector Chargers & Charging Cables
Application
• High voltage/high current modules: inverter, battery,
junction box, power electric box

Description Charging Inlets
• Single wire shielding
• Sealing connection system: mated header
• Header mount to device with face seal
• Unique integrated electric interlock
• Two-stage disconnect for safe unmating
• Axial Mating Assist System on harness
• 2 HV power circuits (8.0 mm round terminal)
• Flange size: 50 mm x 70 mm
• IP2XB Finger proof/touch safe Internal Battery Connections
• Modular design for different cable size as module unit
• Cable range: 16 to 50 mm power circuit; 0.5
2
2
to 0.75 mm electric interlock
• Multiple keys/indexes available
Performance
• Current capacity: 230A at 70°C
• Voltage: 750V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IPX9K HV Electrical Centers
• Electrical protection: IP2XB

Availability
• Call for availability

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 37 HV/LV Wiring Assemblies
without notice. To verify product information, please contact a Delphi representative.
