High Voltage Shielded/Sealed Connections

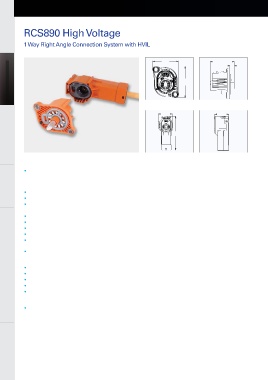

HV Auxiliary Modules RCS890 High Voltage

1 Way Right Angle Connection System with HVIL
HV Auxiliary Modules
51 51 9.1
HV Power Conversion HV Power Conversion HV Power Conversion 62 62 9.1
50.1
50.1

Chargers & Charging Cables 46.2 115.9 115.9 46.1 46.1
46.2

Application
• High voltage/high current modules: inverter, battery,
junction box, power electric box
Charging Inlets Description

• Sealed in mated or unmated position
• Panel mount to device
• Unique integrated electric interlock
- HVIL shunted in header
• Two-step disconnect for safe unmating
Internal Battery Connections • Finger proof/touch safe 2 2
• One HV power circuit (8.0 mm terminal)
• Flange size: 50 mm x 75 mm

2
• Cable range: 16 mm (other wire section possible)
power circuit; 0.5 mm to 0.75 mm electric interlock
• Seven keys/indexes

Performance
• Current capacity: 230A at 70°C
• Voltage: 750V
• Temperature range: -40°C to +125°C
HV Electrical Centers • Electrical protection: IP2XB
• Sealing protection: IP67, IPX9K

Availability
• Call for availability

HV/LV Wiring Assemblies 36 Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change

without notice. To verify product information, please contact a Delphi representative.
