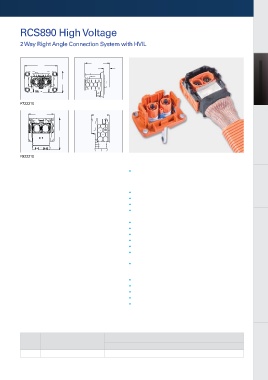

RCS890 High Voltage HV Auxiliary Modules

2 Way Right Angle Connection System with HVIL
HV Auxiliary Modules

54.5
54.5
85
85 13.1
13.1
55.9 HV Power Conversion
55.9

HV Power Conversion
HV Power Conversion
F722210

71.4 71.4 49.1 49.1

89 89 Chargers & Charging Cables

F922210
Application
• High voltage/high current modules: inverter, battery,
junction box, power electric box

Description Charging Inlets
• Bundle shielding with external braid
• Dual sealing connection system: mated and unmated header
• Panel mount to device with face seal to module
• Unique integrated electric interlock
- HVIL shunted in harness connector
• Two-stage disconnect for safe unmating
• Slider Mating Assist System on harness connector
• Two HV power circuits (8.0 mm round terminal)
• Flange size: 51 mm x 62 mm Internal Battery Connections
• IP2XB Finger proof/touch safe
2
• Cable range: 35 to 50 mm power circuit; 0.5 to 0.75 mm
2
HVIL circuit
• One key/index
Performance
• Current capacity: 230A at 70°C
• Voltage: 750V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IPX9K HV Electrical Centers
• Electrical protection: IP2XB

Key/ Mating Information
Index Header Connector HV Connector
1 F722210 F922210 HV/LV Wiring Assemblies
