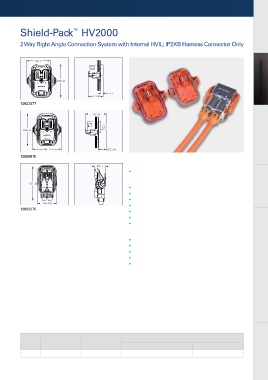

          Shield-Pack  HV2000                                                                                       HV Auxiliary Modules
          2 Way Right Angle Connection System with Internal HVIL; IP2XB Harness Connector Only
                                                                                                                    HV Auxiliary Modules












                                                                                                                    HV Power Conversion
                                                                                                                    HV Power Conversion
          13832577                                                                                                  HV Power Conversion












          13959810                                                                                                  Chargers & Charging Cables
                                                          Application
                                                          •  High voltage/high current modules: inverter, battery
                                                          Description
                                                          •  Panel mount to device with face seal to module         Charging Inlets
                                                          •  Header available with or without terminals
                                                          •  Internal HVIL
                                                          •  Harness connector mates in right angle direction
          13832576
                                                          •  Finger proof/touch safe harness connector only
                                                          •  Cable size: 35 mm 2
                                                          •  One key/index

                                                          Performance
                                                          •  Current capacity: 250A at 85°C                         Internal Battery Connections
                                                          •  Voltage: 600V
                                                          •  Temperature range: -40°C to +85°C
                                                          •  Sealing protection: IP67, IP6K9K
                                                          •  Electrical protection: IP2XB harness connector only    HV Electrical Centers




















             Key/    Header without      Header with                          Mating Information
               Index    Terminal           Terminal          Mating Device Detail           HV Connector
              101        13832577          13959810           See print for information       13832576              HV/LV Wiring Assemblies


          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   33
          without notice. To verify product information, please contact a Delphi representative.
