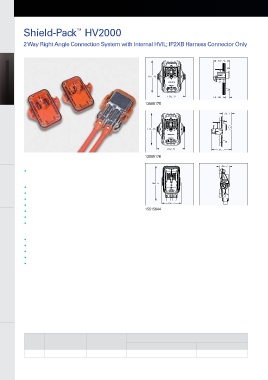

High Voltage Shielded/Sealed Connections
HV Auxiliary Modules Shield-Pack HV2000

™

2 Way Right Angle Connection System with Internal HVIL; IP2XB Harness Connector Only
HV Auxiliary Modules

HV Power Conversion HV Power Conversion HV Power Conversion

13986175

Chargers & Charging Cables

Application 13986176
• High voltage/high current modules: inverter, battery
Charging Inlets Description

• Panel mount to device with face seal to module
• Header available with or without terminals
• Internal HVIL
• Harness connector mates in right angle direction
• Finger proof/touch safe harness connector only 15515644
2
• Cable size: 35 mm
Internal Battery Connections Performance
• One key/index

• Current capacity: 250A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB harness connector only

HV Electrical Centers

HV/LV Wiring Assemblies 32 Key/ Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
Mating Information

Header without
Header with
Index
Mating Device Detail
Terminal
Terminal
HV Connector
15515644
See print for information
101
13986175
13986176

without notice. To verify product information, please contact a Delphi representative.
