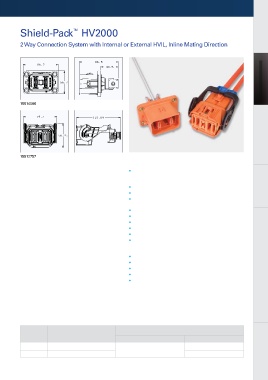

Shield-Pack HV2000 HV Auxiliary Modules
™

2 Way Connection System with Internal or External HVIL, Inline Mating Direction
HV Auxiliary Modules

HV Power Conversion
HV Power Conversion
15514006 HV Power Conversion

15512757 Chargers & Charging Cables
Application
• High voltage/high current modules: inverter, battery
Description
• Panel mount to device with face seal to module Charging Inlets
• Terminal provided as part of header
• Anti-rotation for attachment to terminal in three
orientations
• Internal HVIL shunt in harness connector
• Two-stage locking system for HVIL time delay
• External HVIL blocks lever from moving
• Finger proof/touch safe
• Cable range: 25 mm to 50 mm 2
2
• Multiple keys/indexes Internal Battery Connections
Performance
• Current capacity: 250A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB HV Electrical Centers

Key/ Mating Information
Index Header with Terminal Mating Device Detail HV Connector
101 15514006 15512757
See print for information HV/LV Wiring Assemblies
102 15514007 15512758

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 31
without notice. To verify product information, please contact a Delphi representative.
