High Voltage Shielded/Sealed Connections

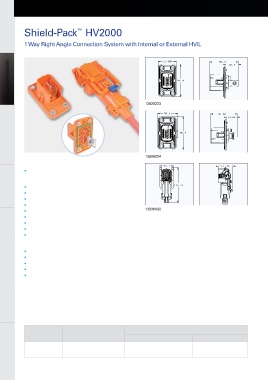

HV Auxiliary Modules Shield-Pack HV2000

™

1 Way Right Angle Connection System with Internal or External HVIL
HV Auxiliary Modules

HV Power Conversion HV Power Conversion HV Power Conversion

13928223

Chargers & Charging Cables

Application 13928224
• High voltage/high current modules: inverter, battery
Charging Inlets Description

• Panel mount to device with face seal to module
• Terminal provided as part of header
• Lever arm for mechanical advantage
• Internal HVIL shunt in harness connector
• Two-stage lever for HVIL time delay 13936492
• External HVIL blocks lever from moving
Internal Battery Connections • Cable range: 25 mm to 50 mm 2
• Finger proof/touch safe
2
• One key/index

Performance
• Current capacity: 250A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB harness connector only
HV Electrical Centers

HV/LV Wiring Assemblies 30 (Device Side) Header with Terminal See print for information HV Connector
Mating Information

Terminal
Mating Device Detail
Straight
13928223
13936492

90°
13928224
Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
without notice. To verify product information, please contact a Delphi representative.
