High Voltage Auxiliary Modules

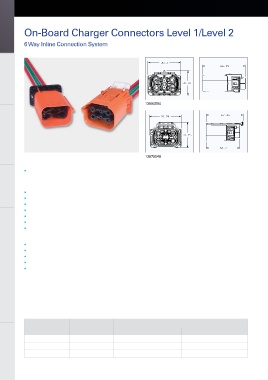

HV Auxiliary Modules HV Auxiliary Modules On-Board Charger Connectors Level 1/Level 2

6 Way Inline Connection System
HV Auxiliary Modules

HV Power Conversion

13990590

Chargers & Charging Cables

Application 13879048
• Inline between inlet and on-board charger for cable routing
Charging Inlets Description
(Level 1 and 2)

• Sealed connection system
• Capability for four power circuits and two signal circuits
• Unshielded with terminal spacing for HV applications
• Two-stage locking system for electrical protection
• Finger proof/touch safe
Internal Battery Connections • Capable of multiple keys/indexes
2
2
• Cable range: 2 mm to 5 mm
Performance
• Current capacity: 30A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB

HV Electrical Centers

Mating Information
Male Connector Male Connector Female Connector Level 1 Female Connector Level 2
HV/LV Wiring Assemblies 22 13990593 (2+2) 13990590 (2+2) 13879051 (2+2) 13879048 (2+2)
Level 2
Level 1
13879047 (3+2)
13879050 (3+2)
13990592 (3+2)
13990589 (3+2)
13990591 (4+2)
13879046 (4+2)
13990588 (4+2)
13879049 (4+2)
Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
without notice. To verify product information, please contact a Delphi representative.
