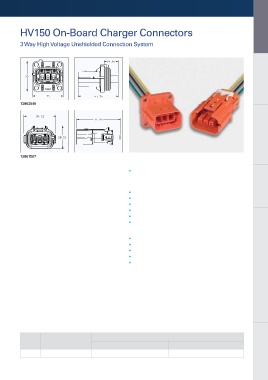

HV150 On-Board Charger Connectors HV Auxiliary Modules

3 Way High Voltage Unshielded Connection System
HV Auxiliary Modules
HV Auxiliary Modules

13863040 HV Power Conversion

13861587 Chargers & Charging Cables
Application
• High voltage unshielded system for on-board charger
applications (Level 1)

Description Charging Inlets
• Sealed connection system
• 1.5 mm terminal
• Unshielded with terminal spacing for HV applications
• Finger proof/touch safe
• Cable size: 2 mm
2
• One key/index

Performance
• Current capacity: 16A at 85°C Internal Battery Connections
• Voltage: 600V
• Temperature range: -40°C to + 125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB HV Electrical Centers

Key/ Mating Information
Index Header Connector Mating Device Detail HV Connector
101 13863040 See print for information 13861587 HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 23
without notice. To verify product information, please contact a Delphi representative.
