High Voltage Auxiliary Modules

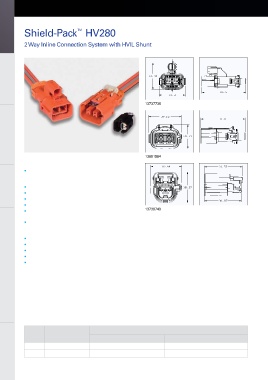

HV Auxiliary Modules HV Auxiliary Modules Shield-Pack HV280

™

2 Way Inline Connection System with HVIL Shunt
HV Auxiliary Modules

HV Power Conversion

13737736

Chargers & Charging Cables

Application 13861584
• Inline connection system for high voltage accessories
Charging Inlets Description

• Sealed connection system
• Two HV power circuits (2.8 mm terminal)
• HVIL with five-second time delay
• Finger proof/touch safe
• Cable range: 2 mm to 5 mm power circuit; 0.5 mm 13738743
2
2
2
HVIL circuit
Internal Battery Connections Performance
• Two keys/indexes
• Current capacity: 40A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB

HV Electrical Centers

HV/LV Wiring Assemblies 18 Key/ Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
Mating Information

HVIL Connector
Female Connector
Male Connector
Index

101
13738743

13861584
13737736

102
13737737

13861585
13738744
without notice. To verify product information, please contact a Delphi representative.
