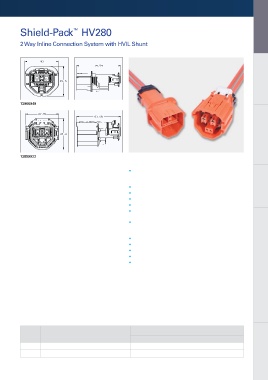

Shield-Pack HV280 HV Auxiliary Modules
™

2 Way Inline Connection System with HVIL Shunt
HV Auxiliary Modules
HV Auxiliary Modules

13966949 HV Power Conversion

13859922 Chargers & Charging Cables
Application
• Inline connection system for high voltage accessories
Description
• Sealed connection system Charging Inlets
• Two HV power circuits (2.8 mm terminal)
• Two-stage locking system for HVIL time delay
• Finger proof/touch safe
• Cable range: 2 mm to 5 mm power circuit; 0.5 mm
2
2
2
HVIL circuit
• Two keys/indexes
Performance
• Current capacity: 40A at 85°C Internal Battery Connections
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB

Key/ Mating Information HV Electrical Centers
Index Male Connector Female Connector
101 13966949 13859922
102 13966948 13859923 HV/LV Wiring Assemblies
