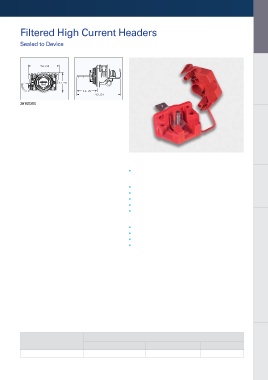

Filtered High Current Headers                                                                             HV Auxiliary Modules


          Sealed to Device
                                                                                                                    HV Auxiliary Modules
                                                                                                                    HV Auxiliary Modules












          28105350                                                                                                  HV Power Conversion















                                                          Application                                               Chargers & Charging Cables
                                                          •  High current filtered header on DC converter
                                                          Description
                                                          •  Panel mount to device with bore seal and ground to case  Charging Inlets
                                                          •  Vertical M8 stud for external ring terminal attachment
                                                          •  M5 captive nut for internal electrical attachment
                                                          •  Filter capacitance 60µF, 25V
                                                          •  Cover with multiple cable dress
                                                          Performance
                                                          •  Current capacity: 250°A at 85°C
                                                          •  Voltage: 14V
                                                          •  Temperature range: -40°C to +105°C                     Internal Battery Connections
                                                          •  Insertion loss: 40dB at 200kHz
























                                                                      Mating Information                            HV Electrical Centers
                 Header Connector         Mating Device Detail         Ring Terminal             Ferrule
                     28105350             See print for information      12146429                28105377           HV/LV Wiring Assemblies


          Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change   27
          without notice. To verify product information, please contact a Delphi representative.
