High Voltage Auxiliary Modules

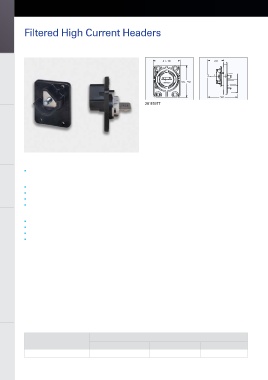

     HV Auxiliary Modules HV Auxiliary Modules  Filtered High Current Headers









  HV Auxiliary Modules


     HV Power Conversion









                                                                 28115977

     Chargers & Charging Cables












            Application
            •  High current filtered pass-through header
     Charging Inlets  Description

            •  Panel mount to device with bore ground contact to case
            •  Horizontal M6 stud for external ring terminal attachment
            •  M5 captive nut for internal electrical attachment
            •  Filter capacitance 60µF, 25V

            Performance
     Internal Battery Connections  •  Temperature range: -40°C to +105°C
            •  Current capacity: 170A at 85°C
            •  Voltage: 14V


            •  Insertion loss: 40dB at 200kHz









     HV Electrical Centers












     HV/LV Wiring Assemblies  26       Header Connector   Mating Device Detail     Mating Information  28105377

                                                                         Ring Terminal
                                                                                                 Ferrule
                                             See print for information

                                                                           12146425
                       28115977
