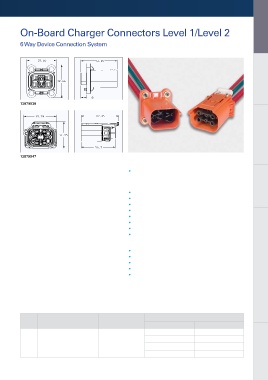

On-Board Charger Connectors Level 1/Level 2 HV Auxiliary Modules

6 Way Device Connection System
HV Auxiliary Modules
HV Auxiliary Modules

13879038 HV Power Conversion

13879047 Chargers & Charging Cables
Application
• High voltage unshielded system for on-board charger
applications (Level 1 and 2)

Description Charging Inlets
• Sealed connection system
• Capability for four power circuits and two signal circuits
• Unshielded with terminal spacing for HV applications
• Two-stage locking system for electrical protection
• One-stage locking system also available
• Finger proof/touch safe
2
2
• Cable range: 2 mm to 5 mm
• Capable of multiple keys/indexes
Performance Internal Battery Connections
• Current capacity: 30A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB

Key/ Header Connector Header Connector Mating Information HV Electrical Centers
Index (Tool required for disconnect) (No tool required) Level 1 Connector Level 2 Connector
13879051 (2+2) 13879048 (2+2)
15525754 (3+0) 15525753 (3+0)
101 13879038 15543396
13879050 (3+2) 13879047 (3+2)
13879049 (4+2) 13879046 (4+2) HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 21
without notice. To verify product information, please contact a Delphi representative.
