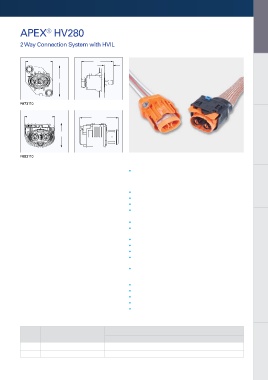

APEX HV280 HV Auxiliary Modules
®

2 Way Connection System with HVIL
HV Auxiliary Modules
HV Auxiliary Modules
46.4
46.4 56 56
15.8
15.8

53 HV Power Conversion
53

F873110

43.9 43.9 57.3 57.3

35.4 35.4 Chargers & Charging Cables

F083110
Application
• High voltage peripheral equipment connection system:
Air conditioning, PTC, Charger

Description Charging Inlets
• Bundle shielding with external braid
• Dual sealing connection system: mated and unmated header
• Panel mount to device with face seal
• Unique integrated electric interlock
- HVIL shunted in harness connector
• Two-stage disconnect for safe unmating
• ErgoMate™ Axial Mating Assist System on harness
connector
• Two HV power circuits (2.8 mm terminal) Internal Battery Connections
• Flange size: 46 mm x 53 mm
• IP2XB Finger proof/touch safe
2
• Cable range: 2.5 to 4 mm power circuit; 0.5 to 0.75 mm
2
HVIL circuit
• Two keys/indexes
Performance
• Current capacity: 35 A at 70°C
• Voltage: 750V
• Temperature range: -40°C to +125°C HV Electrical Centers
• Sealing protection: IP67, IPX9K
• Electrical protection: IP2XB

Key/ Mating Information
Index Header Connector HV Connector
1 F873110 F083110
2 F973110 F183110 HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 19
without notice. To verify product information, please contact a Delphi representative.
