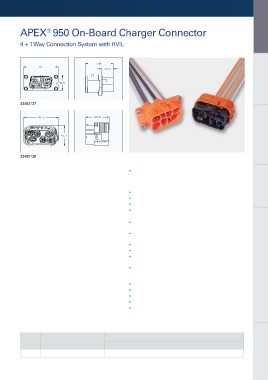

APEX 950 On-Board Charger Connector HV Auxiliary Modules
®

4 + 1 Way Connection System with HVIL
HV Auxiliary Modules
HV Auxiliary Modules

33402137 HV Power Conversion

33402139 Chargers & Charging Cables
Application
• High voltage unshielded system for on-board charger
applications

Description Charging Inlets
• Sealed in mated or unmated position
• Unshielded 4 + 1 way connector
• Panel mount to device with face seal to module
• Unique integrated electric interlock
- HVIL shunted in harness connector
• ErgoMate™ slider for easy handling and reduced
mating force
• 5 HV power circuits (four 9.5 mm and one 2.8 mm
terminals) Internal Battery Connections
• Flange size: 111 mm x 52 mm
• IP2XB Finger proof/touch safe
• Cable range: 10 to 16 mm power circuit; 0.5 to 0.75 mm
2
2
electric interlock
• 1 key/index
Performance
• Current capacity: 125A at 70°C
• Voltage: 750V
• Temperature range: -40°C to +125°C HV Electrical Centers
• Sealing protection: IP67, IPX9K
• Electrical protection: IP2XB

Key/ Mating Information
Index Header Connector HV Connector
1 33402137 33402139 HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 25
without notice. To verify product information, please contact a Delphi representative.
