High Voltage Auxiliary Modules

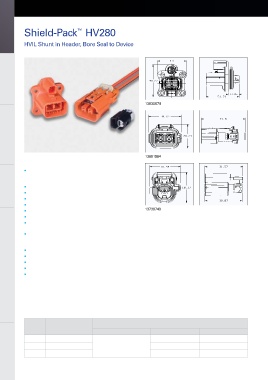

HV Auxiliary Modules HV Auxiliary Modules Shield-Pack HV280

™

HVIL Shunt in Header, Bore Seal to Device
HV Auxiliary Modules

HV Power Conversion

13830674

Chargers & Charging Cables

Application 13861584
• High voltage accessories connection system
Charging Inlets Description

• Sealed connection system
• Sealed to device case through bore seal
• Two HV power circuits (2.8 mm terminal)
• HVIL shunted in header with five-second time delay
• Flange size: 43 mm x 49 mm 2 2 13738743
• Finger proof/touch safe
Internal Battery Connections • Three keys/indexes
• Cable range: 2 mm to 5 mm power circuit; 0.5 mm
2
HVIL circuit

Performance
• Current capacity: 40A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB
HV Electrical Centers

Key/ Header Connector Mating Device Detail Mating Information HVIL Connector
HV/LV Wiring Assemblies 14 101 Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
HV Connector
Index
13738743

13830674
13861584
13861585
102
13738744
13830675
13831228
13861586
13766241
13830676
103
