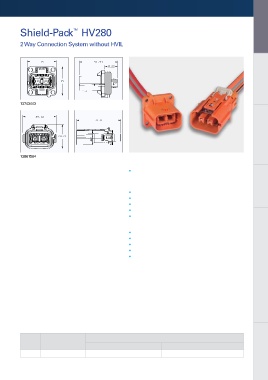

Shield-Pack HV280 HV Auxiliary Modules
™

2 Way Connection System without HVIL
HV Auxiliary Modules
HV Auxiliary Modules

13743443 HV Power Conversion

13861584 Chargers & Charging Cables
Application
• High voltage accessories connection system when no
HVIL is required

Description Charging Inlets
• Sealed to device case
• Two HV power circuits (2.8 mm terminal)
• Finger proof/touch safe
• Cable range: 2 mm to 5 mm power circuit
2
2
• One key/index
Performance
• Current capacity: 40A at 85°C
• Voltage: 600V Internal Battery Connections
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB

Key/ Mating Information HV Electrical Centers
Index Header Connector Mating Device Detail HV Connector
101 13743443 13849778 13861584 HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 15
without notice. To verify product information, please contact a Delphi representative.
