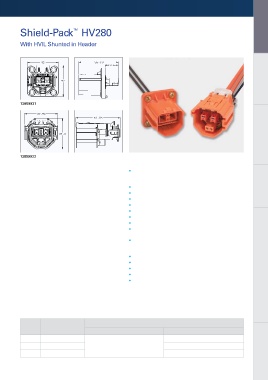

Shield-Pack HV280 HV Auxiliary Modules
™

With HVIL Shunted in Header
HV Auxiliary Modules
HV Auxiliary Modules

13859931 HV Power Conversion

13859922 Chargers & Charging Cables
Application
• High voltage accessories connection system
Description
• Sealed connection system Charging Inlets
• Panel mount to device with face seal
• Internal HVIL (shunt in header connector)
• Two-stage locking system for HVIL time delay
• Two HV power circuits (2.8 mm terminal)
• Flange size: 42 mm x 42 mm
• Finger proof/touch safe
• Cable range: 2 mm to 5 mm power circuit; 0.5 mm
2
2
2
HVIL circuit
• Three keys/indexes Internal Battery Connections
Performance
• Current capacity: 40A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB HV Electrical Centers

Key/ Mating Information
Index Header Connector Mating Device Detail HV Connector
101 13859931 13859922
102 13859932 13860103 13859923
103 13859933 13859924 HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 13
without notice. To verify product information, please contact a Delphi representative.
