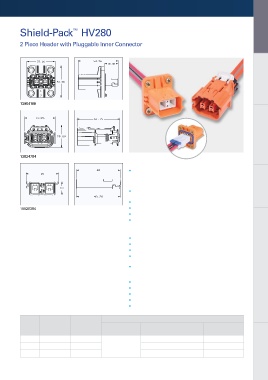

Shield-Pack HV280 HV Auxiliary Modules
™

2 Piece Header with Pluggable Inner Connector
HV Auxiliary Modules
HV Auxiliary Modules

13954108 HV Power Conversion

13824784 Chargers & Charging Cables
Application
• Ideal for internal battery harnesses/high voltage
connection system
Description Charging Inlets
• Inner Connector with TPA can be plugged into header
during device assembly
• Sealed connection system
15526394 • Panel mount to device with face seal
• Internal HVIL (shunt in harness connector)
• Two options available
- Two-stage locking system for HVIL time delay
- Tooless mating system
• Two HV power circuits (2.8 mm terminal) Internal Battery Connections
• Flange size: 38 mm x 43 mm
• Finger proof/touch safe
• Cable range: 2 mm to 5 mm power circuit; 0.5 mm
2
2
2
HVIL circuit
• Three keys/indexes
Performance
• Current capacity: 40A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
• Sealing protection: IP67, IP6K9K HV Electrical Centers
• Electrical protection: IP2XB

Mating Information
Key/ Header Inner Mating Device Mating HV Connector HV Connector
Index Connector Connector Detail (Tool required for disconnect) (No tool required)
101 13954108 15526394 13824784 33107360
102 13954109 15526395 15508564 13830159 33107347
103 13954110 15526396 13830160 33107346 HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 11
without notice. To verify product information, please contact a Delphi representative.
