High Voltage Auxiliary Modules

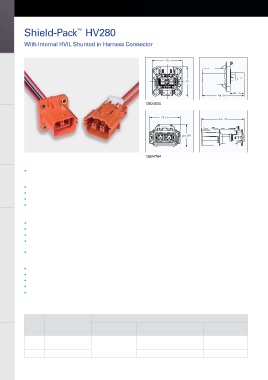

HV Auxiliary Modules HV Auxiliary Modules Shield-Pack HV280

™

With Internal HVIL Shunted in Harness Connector
HV Auxiliary Modules

HV Power Conversion

13824830

Chargers & Charging Cables

Application 13824784
• High voltage accessories connection system
Charging Inlets Description

• Sealed connection system
• Panel mount to device with face seal
• Internal HVIL (shunt in harness connector)
• Two options available
- Two-stage locking system for HVIL time delay
- Tooless mating system
Internal Battery Connections • Flange size: 39 mm x 39 mm 2 2
• Two HV power circuits (2.8 mm terminal)

• Finger proof/touch safe
• Cable range: 2 mm to 5 mm power circuit; 0.5 mm
2
HVIL circuit
• Three keys/indexes

Performance
• Current capacity: 40A at 85°C
• Voltage: 600V
• Temperature range: -40°C to +125°C
HV Electrical Centers • Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB

Mating Information
HV Connector

Key/ Header Connector Mating Device (Tool required for disconnect) (No tool required)
HV Connector
HV/LV Wiring Assemblies 10 101 Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
Index
Detail
33107360
13824830
13824784
33107347
13830159
13837174
13830171
102
33107346
103

13830160
13830172
without notice. To verify product information, please contact a Delphi representative.
