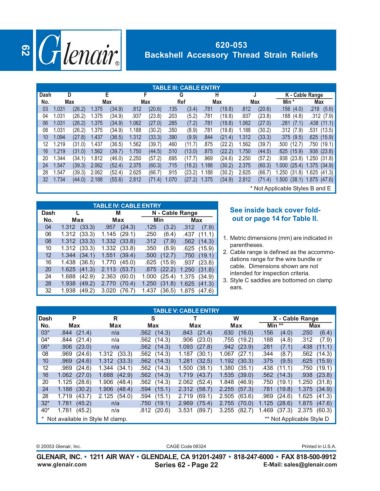

Page 550 - Circular Connector Backshells and Accessories
P. 550

620-053
                                                Backshell  Accessory Thread Strain Reliefs
        62




                                                  TABLE III: CABLE ENTRY
              Dash     D           E           F           G          H            J         K - Cable Range
              No.     Max         Max         Max         Ref        Max          Max       Min *     Max
               03  1.031  (26.2) 1.375  (34.9)  .812  (20.6)  .135  (3.4)  .781  (19.8)  .812  (20.6)  .156  (4.0)  .219   (5.6)
               04  1.031  (26.2) 1.375  (34.9)  .937  (23.8)  .203  (5.2)  .781  (19.8)  .937  (23.8)  .188  (4.8)  .312  (7.9)
               06  1.031  (26.2) 1.375  (34.9)  1.062  (27.0)  .285  (7.2)  .781  (19.8)  1.062  (27.0)  .281  (7.1)  .438  (11.1)
               08  1.031  (26.2) 1.375  (34.9)  1.188  (30.2)  .350  (8.9)  .781  (19.8)  1.188  (30.2)  .312  (7.9) .531  (13.5)
               10  1.094  (27.8) 1.437  (36.5)  1.312  (33.3)  .390  (9.9)  .844  (21.4)  1.312  (33.3)  .375  (9.5) .625  (15.9)
               12  1.219  (31.0) 1.437  (36.5)  1.562  (39.7)  .460  (11.7)  .875  (22.2)  1.562  (39.7)  .500  (12.7) .750  (19.1)
               16  1.219  (31.0) 1.562  (39.7)  1.750  (44.5)  .510  (13.0)  .875  (22.2)  1.750  (44.5)  .625  (15.9) .938  (23.8)
               20  1.344  (34.1) 1.812  (46.0)  2.250  (57.2)  .695  (17.7)  .969  (24.6)  2.250  (57.2)  .938  (23.8) 1.250  (31.8)
               24  1.547  (39.3) 2.062  (52.4)  2.375  (60.3)  .715  (18.2) 1.188  (30.2)  2.375  (60.3)  1.000  (25.4) 1.375  (34.9)
               28  1.547  (39.3) 2.062  (52.4)  2.625  (66.7)  .915  (23.2) 1.188  (30.2)  2.625  (66.7)  1.250  (31.8) 1.625  (41.3)
               32  1.734  (44.0) 2.188  (55.6)  2.812  (71.4) 1.070  (27.2) 1.375  (34.9)  2.812  (71.4)  1.500  (38.1) 1.875  (47.6)
                                                                                  * Not Applicable Styles B and E


                               TABLE IV: CABLE ENTRY
              Dash       L            M           N - Cable Range          See inside back cover fold-
               No.      Max          Max          Min          Max          out or page 14 for Table II.
               04    1.312 (33.3)  .957 (24.3)  .125  (3.2)  .312  (7.9)
               06    1.312 (33.3)  1.145 (29.1)  .250  (6.4)  .437 (11.1)
               08    1.312 (33.3)  1.332 (33.8)  .312  (7.9)  .562 (14.3)  1. Metric dimensions (mm) are indicated in
               10    1.312 (33.3)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  parentheses.
               12    1.344 (34.1)  1.551 (39.4)  .500 (12.7)  .750 (19.1)  2. Cable range is defined as the accommo-
                                                                           dations range for the wire bundle or
               16    1.438 (36.5)  1.770 (45.0)  .625 (15.9)  .937 (23.8)
               20    1.625 (41.3)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)  cable.  Dimensions shown are not
               24    1.688 (42.9)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)  intended for inspection criteria.
               28    1.938 (49.2)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  3. Style C saddles are bottomed on clamp
               32    1.938 (49.2)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)  ears.


                                                  TABLE V: CABLE ENTRY
             Dash       P            R            S            T            W            X - Cable Range
              No.      Max          Max         Max           Max          Max         Min **        Max
              03*   .844 (21.4)      n/a      .562 (14.3)  .843 (21.4)   .630 (16.0)  .156  (4.0)  .250  (6.4)
              04*   .844 (21.4)      n/a      .562 (14.3)  .906 (23.0)   .755 (19.2)  .188  (4.8)  .312  (7.9)
              06*   .906 (23.0)      n/a      .562 (14.3)  1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
               08   .969 (24.6)  1.312 (33.3)  .562 (14.3)  1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
               10   .969 (24.6)  1.312 (33.3)  .562 (14.3)  1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
               12   .969 (24.6)  1.344 (34.1)  .562 (14.3)  1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
               16  1.062 (27.0)  1.688 (42.9)  .562 (14.3)  1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
               20  1.125 (28.6)  1.906 (48.4)  .562 (14.3)  2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
               24  1.188 (30.2)  1.906 (48.4)  .594 (15.1)  2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
               28  1.719 (43.7)  2.125 (54.0)  .594 (15.1)  2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
              32*  1.781 (45.2)      n/a      .750 (19.1)  2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
              40*  1.781 (45.2)      n/a      .812 (20.6)  3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
              *  Not available in Style M clamp.                                                                                  ** Not Applicable Style D
