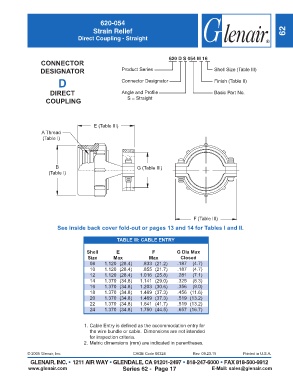

620-054
Strain Relief 62
Direct Coupling - Straight

620 D S 054 M 16
CONNECTOR
DESIGNATOR Product Series Shell Size (Table III)

D Connector Designator Finish (Table II)

DIRECT Angle and Profile Basic Part No.
COUPLING S = Straight

E (Table III)
A Thread
(Table I)

B G (Table III)
(Table I)

F (Table III)
See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: CABLE ENTRY

Shell E F G Dia Max
Size Max Max Closed
08 1.120 (28.4) .833 (21.2) .187 (4.7)
10 1.120 (28.4) .855 (21.7) .187 (4.7)
12 1.120 (28.4) 1.016 (25.8) .281 (7.1)
14 1.370 (34.8) 1.141 (29.0) .325 (8.3)
16 1.370 (34.8) 1.203 (30.6) .356 (9.0)
18 1.370 (34.8) 1.469 (37.3) .456 (11.6)
20 1.370 (34.8) 1.469 (37.3) .519 (13.2)
22 1.370 (34.8) 1.641 (41.7) .519 (13.2)
24 1.370 (34.8) 1.750 (44.5) .657 (16.7)

1. Cable Entry is defined as the accommodation entry for
the wire bundle or cable. Dimensions are not intended
for inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.
