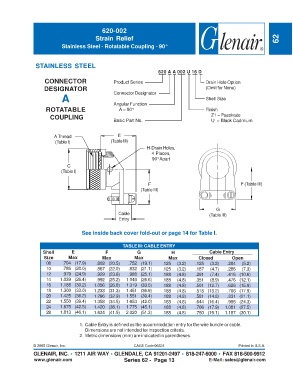

Page 541 - Circular Connector Backshells and Accessories

620-002
Strain Relief 62
Stainless Steel - Rotatable Coupling - 90°

STAINLESS STEEL
620 A A 002 U 16 D
CONNECTOR Product Series Drain Hole Option
DESIGNATOR Connector Designator (Omit for None)
A Shell Size
Angular Function
ROTATABLE A = 90° Finish
COUPLING Z1 = Passivate
Basic Part No. U = Black Cadmium

A Thread E
(Table I) (Table III)
H-Drain Holes,
4 Places,
90° Apart
C
(Table I)

F F (Table III)
(Table III)

G
Cable (Table III)
Entry

See inside back cover fold-out or page 14 for Table I.

TABLE III: CABLE ENTRY
Shell E F G H Cable Entry
Size Max Max Max Max Closed Open
08 .704 (17.9) .808 (20.5) .752 (19.1) .125 (3.2) .125 (3.2) .204 (5.2)
10 .786 (20.0) .867 (22.0) .832 (21.1) .125 (3.2) .187 (4.7) .286 (7.3)
12 .979 (24.9) .929 (23.6) .988 (25.1) .188 (4.8) .291 (7.4) .416 (10.6)
14 1.039 (26.4) .992 (25.2) 1.046 (26.6) .188 (4.8) .351 (8.9) .476 (12.1)
16 1.188 (30.2) 1.056 (26.8) 1.319 (33.5) .188 (4.8) .501 (12.7) .626 (15.9)
18 1.300 (33.0) 1.233 (31.3) 1.451 (36.9) .188 (4.8) .518 (13.2) .706 (17.9)
20 1.425 (36.2) 1.296 (32.9) 1.551 (39.4) .188 (4.8) .581 (14.8) .831 (21.1)
22 1.550 (39.4) 1.358 (34.5) 1.653 (42.0) .188 (4.8) .644 (16.4) .956 (24.3)
24 1.675 (42.5) 1.420 (36.1) 1.775 (45.1) .188 (4.8) .706 (17.9) 1.081 (27.5)
28 1.813 (46.1) 1.634 (41.5) 2.020 (51.3) .188 (4.8) .750 (19.1) 1.187 (30.1)

1. Cable Entry is defined as the accommodation entry for the wire bundle or cable.
Dimensions are not intended for inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.
