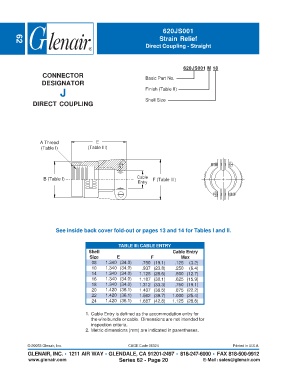

620JS001
Strain Relief
Direct Coupling - Straight
62

620JS001 M 18
CONNECTOR Basic Part No.
DESIGNATOR
J Finish (Table II)
Shell Size
DIRECT COUPLING

A Thread E
(Table I) (Table III)

B (Table I) Cable F (Table III)
Entry

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: CABLE ENTRY
Shell Cable Entry
Size E F Max
08 1.340 (34.0) .750 (19.1) .125 (3.2)
10 1.340 (34.0) .937 (23.8) .250 (6.4)
14 1.340 (34.0) 1.125 (28.6) .500 (12.7)
16 1.340 (34.0) 1.187 (30.1) .625 (15.9)
18 1.340 (34.0) 1.312 (33.3) .750 (19.1)
20 1.420 (36.1) 1.437 (36.5) .875 (22.2)
22 1.420 (36.1) 1.562 (39.7) 1.000 (25.4)
24 1.420 (36.1) 1.687 (42.8) 1.125 (28.6)

1. Cable Entry is defined as the accommodation entry for
the wire bundle or cable. Dimensions are not intended for
inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.

© 20053 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 62 - Page 20 E-Mail: sales@glenair.com
