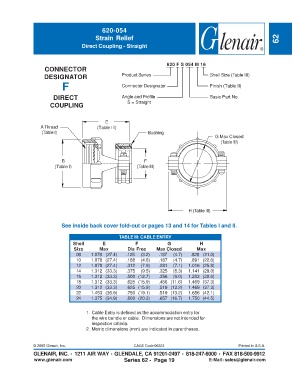

Page 547 - Circular Connector Backshells and Accessories

620-054
Strain Relief 62
Direct Coupling - Straight

620 F S 054 M 16
CONNECTOR
DESIGNATOR Product Series Shell Size (Table III)
F Connector Designator Finish (Table II)

DIRECT Angle and Profile Basic Part No.
COUPLING S = Straight

E
A Thread (Table III)
(Table I) Bushing
G Max Closed
(Table III)

B F
(Table I) (Table III)

H (Table III)

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: CABLE ENTRY
Shell E F G H
Size Max Dia Free Max Closed Max
08 1.078 (27.4) .125 (3.2) .187 (4.7) .828 (21.0)
10 1.078 (27.4) .188 (4.8) .187 (4.7) .891 (22.6)
12 1.078 (27.4) .312 (7.9) .281 (7.1) 1.016 (25.8)
14 1.312 (33.3) .375 (9.5) .325 (8.3) 1.141 (29.0)
16 1.312 (33.3) .500 (12.7) .356 (9.0) 1.203 (30.6)
18 1.312 (33.3) .625 (15.9) .456 (11.6) 1.469 (37.3)
20 1.312 (33.3) .625 (15.9) .519 (13.2) 1.469 (37.3)
22 1.453 (36.9) .750 (19.1) .519 (13.2) 1.656 (42.1)
24 1.375 (34.9) .800 (20.3) .657 (16.7) 1.750 (44.5)

1. Cable Entry is defined as the accommodation entry for
the wire bundle or cable. Dimensions are not intended for
inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
