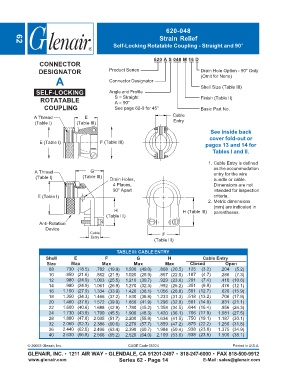

Page 542 - Circular Connector Backshells and Accessories
P. 542

620-048
                                                                    Strain Relief
                                                Self-Locking Rotatable Coupling - Straight and 90°
        62

                                                                 620 A S 048 M 16 D
                  CONNECTOR
                 DESIGNATOR                    Product Series                        Drain Hole Option - 90° Only
                                                                                     (Omit for None)
                        A                      Connector Designator

                SELF-LOCKING                   Angle and Profile                     Shell Size (Table III)
                  ROTATABLE                      S = Straight                        Finish (Table II)
                                                 A = 90°
                    COUPLING                     See page 62-9 for 45°               Basic Part No.

               A Thread             E                                    Cable
                (Table I)        (Table III)                             Entry
                                                                                         See inside back
                                                                                         cover fold-out or
                  E (Table I)              F (Table III)                               pages 13 and 14 for
                                                                                          Tables I and II.


                                                                                        1. Cable Entry is defined
                                                                                          as the accommodation
                A Thread               G                                                  entry for the wire
                (Table I)           (Table III)  Drain Holes,                             bundle or cable.
                                                4 Places,                                 Dimensions are not
                                                90° Apart                                 intended for inspection
                 E (Table I)                                                              criteria.
                                                                                        2. Metric dimensions
                                                                                          (mm) are indicated in
                                                 H                           H (Table III)  parentheses.
                                             (Table III)
                 Anti-Rotation
                    Device
                                       Cable                         F
                                       Entry
                                                                 (Table III)

                                                  TABLE III: CABLE ENTRY
                    Shell       E            F            G            H              Cable Entry
                     Size      Max          Max          Max          Max       Closed         Open
                     08     .730 (18.5)  .782 (19.9)  1.930 (49.0)  .808 (20.5)  .125  (3.2)  .204  (5.2)
                     10     .850 (21.6)  .862 (21.9)  1.020 (25.9)  .867 (22.0)  .187  (4.7)  .286  (7.3)
                     12     .980 (24.9)  1.003 (25.5)  1.210 (30.7)  .929 (23.6)  .291  (7.4)  .416 (10.6)
                     14     .980 (24.9)  1.061 (26.9)  1.270 (32.3)  .992 (25.2)  .351  (8.9)  .476 (12.1)
                     16    1.100 (27.9)  1.334 (33.9)  1.420 (36.1)  1.056 (26.8)  .501 (12.7)  .626 (15.9)
                     18    1.350 (34.3)  1.466 (37.2)  1.530 (38.9)  1.233 (31.3)  .518 (13.2)  .706 (17.9)
                     20    1.480 (37.6)  1.572 (39.9)  1.650 (41.9)  1.296 (32.9)  .581 (14.8)  .831 (21.1)
                     22    1.600 (40.6)  1.688 (42.9)  1.780 (45.2)  1.358 (34.5)  .644 (16.4)  .956 (24.3)
                     24    1.730 (43.9)  1.790 (45.5)  1.900 (48.3)  1.420 (36.1)  .706 (17.9)  1.081 (27.5)
                     28    1.880 (47.8)  2.035 (51.7)  2.200 (55.9)  1.634 (41.5)  .750 (19.1)  1.187 (30.1)
                     32    2.060 (52.3)  2.386 (60.6)  2.270 (57.7)  1.859 (47.2)  .875 (22.2)  1.250 (31.8)
                     36    2.440 (62.0)  2.496 (63.4)  2.390 (60.7)  1.984 (50.4)  .938 (23.8)  1.375 (34.9)
                     40    2.630 (66.8)  2.566 (65.2)  2.520 (64.0)  2.109 (53.6)  .938 (23.8)  1.500 (38.1)

             © 20053 Glenair, Inc.                     CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 62 - Page 14                E-Mail: sales@glenair.com
