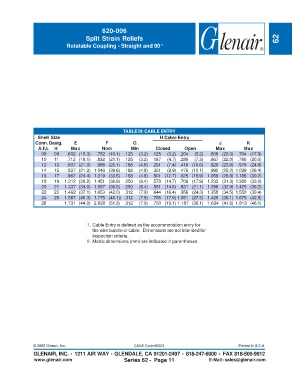

Page 539 - Circular Connector Backshells and Accessories

620-006
Split Strain Reliefs 62
Rotatable Coupling - Straight and 90°

TABLE III: CABLE ENTRY
Shell Size H Cable Entry
Conn. Desig. E F G J K
A,F,L H Max Nom Min Closed Open Max Max
08 09 .602 (15.3) .752 (19.1) .125 (3.2) .125 (3.2) .204 (5.2) .808 (20.3) .704 (17.9)
10 11 .712 (18.1) .832 (21.1) .125 (3.2) .187 (4.7) .286 (7.3) .867 (22.0) .786 (20.0)
12 13 .837 (21.3) .988 (25.1) .188 (4.8) .291 (7.4) .416 (10.6) .929 (23.6) .979 (24.9)
14 15 .837 (21.3) 1.046 (26.6) .188 (4.8) .351 (8.9) .476 (12.1) .992 (25.2) 1.039 (26.4)
16 17 .962 (24.4) 1.319 (33.5) .188 (4.8) .501 (12.7) .625 (15.9) 1.056 (26.8) 1.188 (30.2)
18 19 1.212 (30.8) 1.451 (36.9) .250 (6.4) .578 (14.7) .706 (17.9) 1.233 (31.3) 1.300 (33.0)
20 21 1.337 (34.0) 1.557 (39.5) .250 (6.4) .581 (14.8) .831 (21.1) 1.296 (32.9) 1.425 (36.2)
22 23 1.462 (37.1) 1.653 (42.0) .312 (7.9) .644 (16.4) .956 (24.3) 1.358 (34.5) 1.550 (39.4)
24 25 1.587 (40.3) 1.775 (45.1)) .312 (7.9) .706 (17.9) 1.081 (27.5) 1.420 (36.1) 1.675 (42.5)
28 1.731 (44.0) 2.020 (51.3) .312 (7.9) .750 (19.1) 1.187 (30.1) 1.634 (41.5) 1.813 (46.1)

1. Cable Entry is defined as the accommodation entry for
the wire bundle or cable. Dimensions are not intended for
inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.
