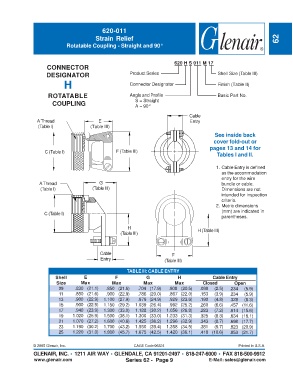

Page 537 - Circular Connector Backshells and Accessories

620-011
Strain Relief 62
Rotatable Coupling - Straight and 90°

620 H S 011 M 17
CONNECTOR
DESIGNATOR Product Series Shell Size (Table III)
H Connector Designator Finish (Table II)

ROTATABLE Angle and Profile Basic Part No.
COUPLING S = Straight
A = 90°

Cable
A Thread E Entry
(Table I) (Table III)
See inside back
cover fold-out or
pages 13 and 14 for
C (Table I) F (Table III)
Tables I and II.

1. Cable Entry is defined
as the accommodation
entry for the wire
A Thread G bundle or cable.
(Table I) (Table III) Dimensions are not
intended for inspection
criteria.
2. Metric dimensions
(mm) are indicated in
C (Table I)
parentheses.

H
(Table III) H (Table III)

Cable F
Entry (Table III)

TABLE III: CABLE ENTRY
Shell E F G H Cable Entry
Size Max Max Max Max Closed Open
09 .830 (21.1) .850 (21.6) .704 (17.9) .808 (20.5) .098 (2.5) .234 (5.9)
11 .850 (21.6) .900 (22.9) .786 (20.0) .867 (22.0) .153 (3.9) .234 (5.9)
13 .900 (22.9) 1.100 (27.9) .979 (24.9) .929 (23.6) .190 (4.8) .328 (8.3)
15 .900 (22.9) 1.150 (29.2) 1.039 (26.4) .992 (25.2) .260 (6.6) .457 (11.6)
17 .940 (23.9) 1.300 (33.0) 1.188 (30.2) 1.056 (26.8) .283 (7.2) .614 (15.6)
19 1.020 (25.9) 1.500 (38.1) 1.300 (33.0) 1.233 (31.3) .325 (8.3) .634 (16.1)
21 1.070 (27.2) 1.600 (40.6) 1.425 (36.2) 1.296 (32.9) .343 (8.7) .698 (17.7)
23 1.190 (30.2) 1.700 (43.2) 1.550 (39.4) 1.358 (34.5) .381 (9.7) .823 (20.9)
25 1.220 (31.0) 1.800 (45.7) 1.675 (42.5) 1.420 (36.1) .418 (10.6) .853 (21.7)
