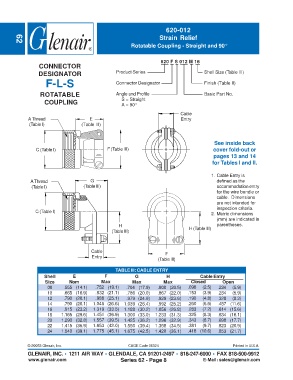

Page 536 - Circular Connector Backshells and Accessories
P. 536

620-012
                                                                    Strain Relief
                                                        Rotatable Coupling - Straight and 90°
        62

                                                                    620 F S 012 M 16
                 CONNECTOR
                 DESIGNATOR                       Product Series                      Shell Size (Table III)
                    F-L-S                         Connector Designator                Finish (Table II)


                  ROTATABLE                       Angle and Profile                   Basic Part No.
                    COUPLING                        S = Straight
                                                    A = 90°
                                                                            Cable
             A Thread                  E                                     Entry
             (Table I)             (Table III)


                                                                                           See inside back
                C (Table I)                   F (Table III)                               cover fold-out or
                                                                                          pages 13 and 14
                                                                                          for Tables I and II.

                                                                                         1. Cable Entry is
              A Thread                 G                                                    defined as the
              (Table I)             (Table III)                                             accommodation entry
                                                                                            for the wire bundle or
                                                                                            cable.  Dimensions
                                                                                            are not intended for
                                                                                            inspection criteria.
                C (Table I)
                                                                                         2. Metric dimensions
                                                                                            (mm) are indicated in
                                                   H                                        parentheses.
                                                (Table III)                     H (Table III)



                                       Cable                          F
                                       Entry
                                                                   (Table III)

                                                 TABLE III: CABLE ENTRY
                    Shell      E             F           G             H             Cable Entry
                    Size      Nom          Max          Max          Max         Closed       Open
                     08     .555 (14.1)  .752 (19.1)  .704 (17.9)  .808 (20.5)  .098  (2.5)  .234  (5.9)
                     10     .665 (16.9)  .832 (21.1)  .786 (20.0)  .867 (22.0)  .153  (3.9)  .234  (5.9)
                     12     .790 (20.1)  .988 (25.1)  .979 (24.9)  .929 (23.6)  .190  (4.8)  .328  (8.3)
                     14     .790 (20.1)  1.046 (26.6)  1.039 (26.4)  .992 (25.2)  .260  (6.6)  .457 (11.6)
                     16     .915 (23.2)  1.319 (33.5)  1.188 (30.2)  1.056 (26.8)  .283  (7.2)  .614 (15.6)
                     18    1.165 (29.6)  1.451 (36.9)  1.300 (33.0)  1.233 (31.3)  .325  (8.3)  .634 (16.1)
                     20    1.290 (32.8)  1.557 (39.5)  1.425 (36.2)  1.296 (32.9)  .343  (8.7)  .698 (17.7)
                     22    1.415 (35.9)  1.653 (42.0)  1.550 (39.4)  1.358 (34.5)  .381  (9.7)  .823 (20.9)
                     24    1.540 (39.1)  1.775 (45.1)  1.675 (42.5)  1.420 (36.1)  .418 (10.6)  .853 (21.7)


             © 20053 Glenair, Inc.                     CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 62 - Page 8                 E-Mail: sales@glenair.com
