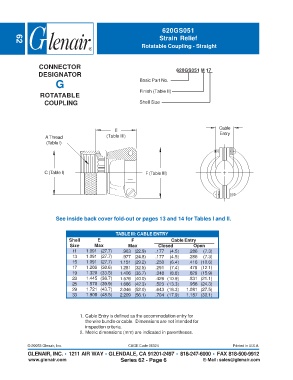

620GS051
Strain Relief
62
Rotatable Coupling - Straight

CONNECTOR 620GS051 M 17
DESIGNATOR
G Basic Part No.

Finish (Table II)
ROTATABLE
COUPLING Shell Size

Cable
E Entry
A Thread (Table III)
(Table I)

C (Table I) F (Table III)

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: CABLE ENTRY
Shell E F Cable Entry
Size Max Max Closed Open
11 1.091 (27.7) .903 (22.9) .177 (4.5) .286 (7.3)
13 1.091 (27.7) .977 (24.8) .177 (4.5) .286 (7.3)
15 1.091 (27.7) 1.151 (29.2) .250 (6.4) .416 (10.6)
17 1.206 (30.6) 1.281 (32.5) .291 (7.4) .476 (12.1)
19 1.320 (33.5) 1.406 (35.7) .348 (8.8) .626 (15.9)
23 1.445 (36.7) 1.576 (40.0) .429 (10.9) .831 (21.1)
25 1.570 (39.9) 1.666 (42.3) .523 (13.3) .956 (24.3)
29 1.721 (43.7) 2.046 (52.0) .643 (16.3) 1.081 (27.5)
33 1.908 (48.5) 2.209 (56.1) .704 (17.9) 1.187 (30.1)

1. Cable Entry is defined as the accommodation entry for
the wire bundle or cable. Dimensions are not intended for
inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.
