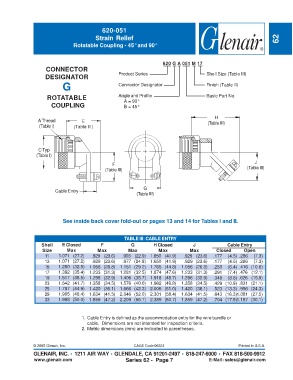

Page 535 - Circular Connector Backshells and Accessories

620-051
Strain Relief 62
Rotatable Coupling - 45° and 90°

620 G A 051 M 17
CONNECTOR
DESIGNATOR Product Series Shell Size (Table III)
G Connector Designator Finish (Table II)

ROTATABLE Angle and Profile Basic Part No.
A = 90°
COUPLING B = 45°

H
A Thread E (Table III)
(Table I) (Table III)

C Typ
(Table I)
F J
(Table III) (Table III)

G
Cable Entry
(Table III)

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: CABLE ENTRY
Shell E Closed F G H Closed J Cable Entry
Size Max Max Max Max Max Closed Open
11 1.071 (27.2) .929 (23.6) .903 (22.9) 1.650 (41.9) .929 (23.6) .177 (4.5) .286 (7.3)
13 1.071 (27.2) .929 (23.6) .977 (24.8) 1.650 (41.9) .929 (23.6) .177 (4.5) .286 (7.3)
15 1.280 (32.5) 1.056 (26.8) 1.151 (29.2) 1.765 (44.8) 1.056 (26.8) .250 (6.4) .416 (10.6)
17 1.392 (35.4) 1.233 (31.3) 1.281 (32.5) 1.874 (47.6) 1.233 (31.3) .291 (7.4) .476 (12.1)
19 1.517 (38.5) 1.296 (32.9) 1.406 (35.7) 1.918 (48.7) 1.296 (32.9) .348 (8.8) .626 (15.9)
23 1.642 (41.7) 1.358 (34.5) 1.576 (40.0) 1.962 (49.8) 1.358 (34.5) .429 (10.9) .831 (21.1)
25 1.767 (44.9) 1.420 (36.1) 1.666 (42.3) 2.006 (51.0) 1.420 (36.1) .523 (13.3) .956 (24.3)
29 1.905 (48.4) 1.634 (41.5) 2.046 (52.0) 2.301 (58.4) 1.634 (41.5) .643 (16.3)1.081 (27.5)
33 1.968 (50.0) 1.859 (47.2) 2.209 (56.1) 2.389 (60.7) 1.859 (47.2) .704 (17.9)1.187 (30.1)

1. Cable Entry is defined as the accommodation entry for the wire bundle or
cable. Dimensions are not intended for inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 62 - Page 7 E-Mail: sales@glenair.com
