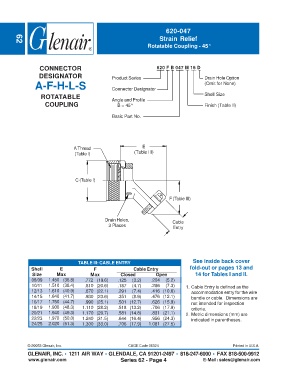

Page 532 - Circular Connector Backshells and Accessories

620-047
Strain Relief
Rotatable Coupling - 45°
62

CONNECTOR 620 F B 047 M 16 D
DESIGNATOR Product Series Drain Hole Option
A-F-H-L-S Connector Designator (Omit for None)

ROTATABLE Angle and Profile Shell Size
COUPLING B = 45° Finish (Table II)

Basic Part No.

A Thread E
(Table I) (Table III)

C (Table I)

F (Table III)

Drain Holes, Cable
3 Places Entry

TABLE III: CABLE ENTRY See inside back cover
Shell E F Cable Entry fold-out or pages 13 and
Size Max Max Closed Open 14 for Tables I and II.
08/09 1.450 (36.8) .772 (19.6) .125 (3.2) .204 (5.2)
10/11 1.510 (38.4) .810 (20.6) .187 (4.7) .286 (7.3) 1. Cable Entry is defined as the
12/13 1.610 (40.9) .870 (22.1) .291 (7.4) .416 (10.6) accommodation entry for the wire
14/15 1.640 (41.7) .930 (23.6) .351 (8.9) .476 (12.1) bundle or cable. Dimensions are
16/17 1.760 (44.7) .990 (25.1) .501 (12.7) .626 (15.9) not intended for inspection
18/19 1.900 (48.3) 1.110 (28.2) .518 (13.2) .706 (17.9) criteria.
20/21 1.940 (49.3) 1.170 (29.7) .581 (14.8) .831 (21.1) 2. Metric dimensions (mm) are
22/23 1.970 (50.0) 1.240 (31.5) .644 (16.4) .956 (24.3) indicated in parentheses.
24/25 2.020 (51.3) 1.300 (33.0) .706 (17.9) 1.081 (27.5)

© 20053 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 62 - Page 4 E-Mail: sales@glenair.com
