P. 531

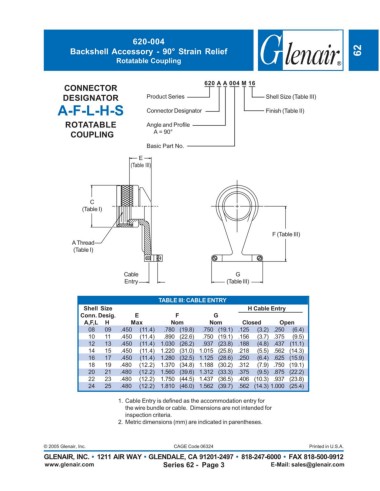

620-004
                        Backshell Accessory - 90° Strain Relief                                                      62
                                      Rotatable Coupling



                                                                   620 A A 004 M 16
                      CONNECTOR
                     DESIGNATOR                 Product Series                         Shell Size (Table III)
                   A-F-L-H-S                    Connector Designator                   Finish (Table II)

                      ROTATABLE                 Angle and Profile
                        COUPLING                  A = 90°

                                                Basic Part No.
                                              E
                                           (Table III)






                              C
                           (Table I)


                                                                                         F (Table III)
                        A Thread
                         (Table I)



                                         Cable                               G
                                         Entry                            (Table III)


                                                    TABLE III: CABLE ENTRY
                            Shell Size                                           H Cable Entry
                           Conn. Desig.     E             F           G
                            A,F,L    H     Max          Nom         Nom        Closed      Open
                             08      09  .450     (11.4)  .780 (19.8)  .750 (19.1)  .125  (3.2) .250  (6.4)
                             10      11  .450     (11.4)  .890 (22.6)  .750 (19.1)  .156  (3.7) .375  (9.5)
                             12      13  .450     (11.4)  1.030 (26.2)  .937 (23.8)  .188  (4.8) .437 (11.1)
                             14      15  .450     (11.4)  1.220 (31.0)  1.015 (25.8)  .218  (5.5) .562 (14.3)
                             16      17  .450     (11.4)  1.280 (32.5)  1.125 (28.6)  .250  (6.4) .625 (15.9)
                             18      19  .480     (12.2)  1.370 (34.8)  1.188 (30.2)  .312  (7.9) .750 (19.1)
                             20      21  .480     (12.2)  1.560 (39.6)  1.312 (33.3)  .375  (9.5) .875 (22.2)
                             22      23  .480     (12.2)  1.750 (44.5)  1.437 (36.5)  .406 (10.3) .937 (23.8)
                             24      25  .480     (12.2)  1.810 (46.0)  1.562 (39.7)  .562 (14.3) 1.000 (25.4)

                                       1. Cable Entry is defined as the accommodation entry for
                                         the wire bundle or cable.  Dimensions are not intended for
                                         inspection criteria.
                                       2. Metric dimensions (mm) are indicated in parentheses.




               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                        Series 62 -  Page 3               E-Mail: sales@glenair.com
