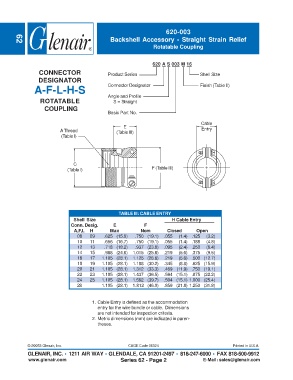

Page 530 - Circular Connector Backshells and Accessories

620-003
Backshell Accessory - Straight Strain Relief
62
Rotatable Coupling

620 A S 003 M 16
CONNECTOR Product Series Shell Size
DESIGNATOR
A-F-L-H-S Connector Designator Finish (Table II)
Angle and Profile
ROTATABLE S = Straight
COUPLING
Basic Part No.

Cable
E
A Thread (Table III) Entry
(Table I)

C
(Table I) F (Table III)

TABLE III: CABLE ENTRY
Shell Size H Cable Entry
Conn. Desig. E F
A,F,L H Max Nom Closed Open
08 09 .625 (15.9) .750 (19.1) .055 (1.4) .125 (3.2)
10 11 .656 (16.7) .750 (19.1) .055 (1.4) .188 (4.8)
12 13 .718 (18.2) .937 (23.8) .095 (2.4) .250 (6.4)
14 15 .968 (24.6) 1.015 (25.8) .219 (5.6) .375 (9.5)
16 17 1.105 (28.1) 1.125 (28.6) .219 (5.6) .500 (12.7)
18 19 1.105 (28.1) 1.188 (30.2) .345 (8.8) .625 (15.9)
20 21 1.105 (28.1) 1.312 (33.3) .469 (11.9) .750 (19.1)
22 23 1.105 (28.1) 1.437 (36.5) .594 (15.1) .875 (22.2)
24 25 1.105 (28.1) 1.562 (39.7) .594 (15.1) 1.000 (25.4)
28 1.105 (28.1) 1.812 (46.0) .859 (21.8) 1.250 (31.8)

1. Cable Entry is defined as the accommodation
entry for the wire bundle or cable. Dimensions
are not intended for inspection criteria.
2. Metric dimensions (mm) are indicated in paren-
theses.

© 20053 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 62 - Page 2 E-Mail: sales@glenair.com
