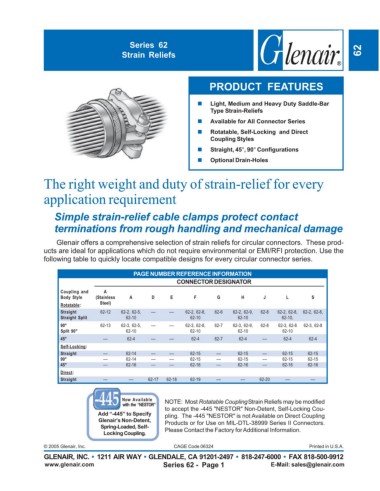

Page 529 - Circular Connector Backshells and Accessories
P. 529
Series 62
Strain Reliefs 62
PRODUCT FEATURES
Light, Medium and Heavy Duty Saddle-Bar
Type Strain-Reliefs
Available for All Connector Series
Rotatable, Self-Locking and Direct
Coupling Styles
Straight, 45°, 90° Configurations
Optional Drain-Holes
The right weight and duty of strain-relief for every
application requirement
Simple strain-relief cable clamps protect contact
terminations from rough handling and mechanical damage
Glenair offers a comprehensive selection of strain reliefs for circular connectors. These prod-
ucts are ideal for applications which do not require environmental or EMI/RFI protection. Use the
following table to quickly locate compatible designs for every circular connector series.
PAGE NUMBER REFERENCE INFORMATION
CONNECTOR DESIGNATOR
Coupling and A
Body Style (Stainless A D E F G H J L S
Steel)
Rotatable:
Straight 62-12 62-2, 62-5, –– –– 62-2, 62-8, 62-6 62-2, 62-9, 62-8 62-2, 62-8, 62-2, 62-8,
Straight Split 62-10 62-10 62-10 62-10,
90° 62-13 62-3, 62-5, –– –– 62-3, 62-8, 62-7 62-3, 62-9, 62-8 62-3, 62-8 62-3, 62-8
Split 90° 62-10 62-10 62-10 62-10
45° –– 62-4 –– –– 62-4 62-7 62-4 –– 62-4 62-4
Self-Locking:
Straight –– 62-14 –– –– 62-15 –– 62-15 –– 62-15 62-15
90° –– 62-14 –– –– 62-15 –– 62-15 –– 62-15 62-15
45° –– 62-16 –– –– 62-16 –– 62-16 –– 62-16 62-16
Direct:
Straight –– –– 62-17 62-18 62-19 –– –– 62-20 –– ––
Now Available NOTE: Most Rotatable CouplingStrain Reliefs may be modified
with the “NESTOR”
to accept the -445 "NESTOR" Non-Detent, Self-Locking Cou-
Add “-445” to Specify pling. The -445 "NESTOR" is not Available on Direct Coupling
Glenair’s Non-Detent, Products or for Use on MIL-DTL-38999 Series II Connectors.
Spring-Loaded, Self- Please Contact the Factory for Additional Information.
Locking Coupling.
