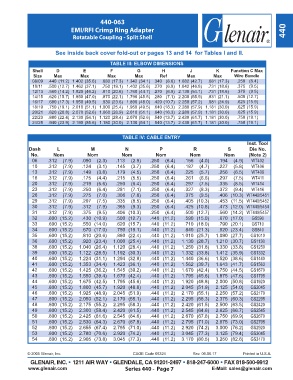

Page 393 - Circular Connector Backshells and Accessories

440-063
EMI/RFI Crimp Ring Adapter 440
Rotatable Coupling - Split Shell

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell D E F G H J K Function C Max
Size Max Max Max Max Ref Max Max Wire Bundle

08/09 .440 (11.2) 1.402 (35.6) .680 (17.3) 1.342 (34.1) .340 (8.6) 1.682 (42.7) .681 (17.3) .250 (6.4)
10/11 .500 (12.7) 1.462 (37.1) .750 (19.1) 1.402 (35.6) .270 (6.9) 1.842 (46.8) .731 (18.6) .375 (9.5)

12/13 .560 (14.2) 1.820 (46.2) .810 (20.6) 1.760 (44.7) .270 (6.9) 2.130 (54.1) .731 (18.6) .375 (9.5)

14/15 .620 (15.7) 1.850 (47.0) .870 (22.1) 1.790 (45.5) .280 (7.1) 2.200 (55.9) .831 (21.1) .500 (12.7)

16/17 .680 (17.3) 1.950 (49.5) .930 (23.6) 1.890 (48.0) .420 (10.7) 2.250 (57.2) .981 (24.9) .625 (15.9)
1.000 (25.4) 1.950 (49.5)
18/19 .750 (19.1) 2.010 (51.1) .640 (16.3) 2.280 (57.9) 1.181 (30.0) .625 (15.9)
20/21 .820 (20.8) 2.070 (52.6) .640 (16.3) 2.280 (57.9) 1.181 (30.0) .625 (15.9)
1.060 (26.9) 2.010 (51.1)
22/23 .880 (22.4) 2.130 (54.1) .540 (13.7) 2.430 (61.7) 1.181 (30.0) .750 (19.1)
1.120 (28.4) 2.070 (52.6)
1.180 (30.0) 2.130 (54.1)
24/25 .940 (23.9) 2.190 (55.6) .540 (13.7) 2.430 (61.7) 1.181 (30.0) .750 (19.1)
TABLE IV: CABLE ENTRY
Inst. Tool
Dash L M N P R S Die No.
No. Nom Nom Nom Nom Nom Nom (Note 2)
06 .312 (7.9) .090 (2.3) .113 (2.9) .250 (6.4) .156 (4.0) .194 (4.9) WT402
10 .312 (7.9) .124 (3.1) .145 (3.7) .250 (6.4) .187 (4.7) .227 (5.8) WT406
13 .312 (7.9) .149 (3.8) .179 (4.5) .250 (6.4) .225 (5.7) .256 (6.5) WT409
16 .312 (7.9) .175 (4.4) .215 (5.5) .250 (6.4) .261 (6.6) .297 (7.5) WT411
20 .312 (7.9) .219 (5.6) .250 (6.4) .250 (6.4) .297 (7.5) .335 (8.5) WT414
23 .312 (7.9) .250 (6.4) .281 (7.1) .250 (6.4) .327 (8.3) .372 (9.4) WT416
26 .312 (7.9) .275 (7.0) .306 (7.8) .250 (6.4) .375 (9.5) .406 (10.3) WT440/5451
29 .312 (7.9) .297 (7.5) .335 (8.5) .250 (6.4) .405 (10.3) .453 (11.5) WT440/5452
30 .312 (7.9) .312 (7.9) .365 (9.3) .250 (6.4) .425 (10.8) .473 (12.0) WT440/5454
31 .312 (7.9) .375 (9.5) .406 (10.3) .250 (6.4) .500 (12.7) .560 (14.2) WT440/5457
32 .600 (15.2) .430 (10.9) .500 (12.7) .440 (11.2) .590 (15.0) .670 (17.0) GS590
33 .600 (15.2) .550 (14.0) .620 (15.7) .440 (11.2) .710 (18.0) .790 (20.1) GS710
34 .600 (15.2) .670 (17.0) .750 (19.1) .440 (11.2) .840 (21.3) .920 (23.4) GS840
35 .600 (15.2) .810 (20.6) .880 (22.4) .440 (11.2) 1.010 (25.7) 1.090 (27.7) GS1010
36 .600 (15.2) .920 (23.4) 1.000 (25.4) .440 (11.2) 1.130 (28.7) 1.210 (30.7) GS1130
38 .600 (15.2) 1.040 (26.4) 1.120 (28.4) .440 (11.2) 1.250 (31.8) 1.330 (33.8) GS1250
39 .600 (15.2) 1.122 (28.5) 1.192 (30.3) .440 (11.2) 1.332 (33.8) 1.412 (35.9) GS1332
40 .600 (15.2) 1.224 (31.1) 1.294 (32.9) .440 (11.2) 1.440 (36.6) 1.520 (38.6) GS1440
41 .600 (15.2) 1.353 (34.4) 1.423 (36.1) .440 (11.2) 1.562 (39.7) 1.643 (41.7) GS1563
42 .600 (15.2) 1.425 (36.2) 1.545 (39.2) .440 (11.2) 1.670 (42.4) 1.750 (44.5) GS1670
43 .600 (15.2) 1.550 (39.4) 1.670 (42.4) .440 (11.2) 1.795 (45.6) 1.875 (47.6) GS1795
44 .600 (15.2) 1.675 (42.5) 1.795 (45.6) .440 (11.2) 1.920 (48.8) 2.000 (50.8) GS1920
45 .600 (15.2) 1.800 (45.7) 1.920 (48.8) .440 (11.2) 2.045 (51.9) 2.125 (54.0) GS2045
46 .600 (15.2) 1.925 (48.9) 2.045 (51.9) .440 (11.2) 2.170 (55.1) 2.250 (57.2) GS2170
47 .600 (15.2) 2.050 (52.1) 2.170 (55.1) .440 (11.2) 2.295 (58.3) 2.375 (60.3) GS2295
48 .600 (15.2) 2.175 (55.2) 2.295 (58.3) .440 (11.2) 2.420 (61.5) 2.500 (63.5) GS2420
49 .600 (15.2) 2.300 (58.4) 2.420 (61.5) .440 (11.2) 2.545 (64.6) 2.625 (66.7) GS2545
50 .600 (15.2) 2.425 (61.6) 2.545 (64.6) .440 (11.2) 2.670 (67.8) 2.750 (69.9) GS2670
51 .600 (15.2) 2.530 (64.3) 2.670 (67.8) .440 (11.2) 2.795 (71.0) 2.875 (73.0) GS2795
52 .600 (15.2) 2.655 (67.4) 2.795 (71.0) .440 (11.2) 2.920 (74.2) 3.000 (76.2) GS2920
53 .600 (15.2) 2.780 (70.6) 2.920 (74.2) .440 (11.2) 3.045 (77.3) 3.125 (79.4) GS3045
54 .600 (15.2) 2.905 (73.8) 3.045 (77.3) .440 (11.2) 3.170 (80.5) 3.250 (82.6) GS3170
