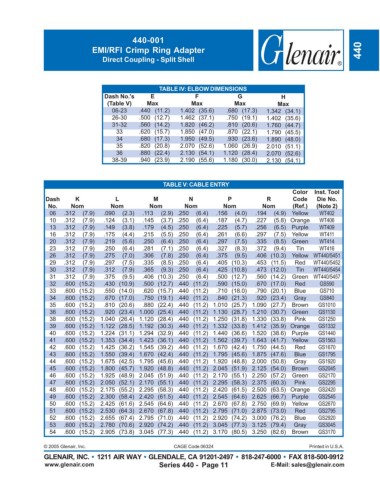

Page 397 - Circular Connector Backshells and Accessories

440-001
EMI/RFI Crimp Ring Adapter 440
Direct Coupling - Split Shell

TABLE IV: ELBOW DIMENSIONS
Dash No.'s E F G H
(Table V) Max Max Max Max
06-23 .440 (11.2) 1.402 (35.6) .680 (17.3) 1.342 (34.1)
26-30 .500 (12.7) 1.462 (37.1) .750 (19.1) 1.402 (35.6)
31-32 .560 (14.2) 1.820 (46.2) .810 (20.6) 1.760 (44.7)
33 .620 (15.7) 1.850 (47.0) .870 (22.1) 1.790 (45.5)
34 .680 (17.3) 1.950 (49.5) .930 (23.6) 1.890 (48.0)
35 .820 (20.8) 2.070 (52.6) 1.060 (26.9) 2.010 (51.1)
36 .880 (22.4) 2.130 (54.1) 1.120 (28.4) 2.070 (52.6)
38-39 .940 (23.9) 2.190 (55.6) 1.180 (30.0) 2.130 (54.1)

TABLE V: CABLE ENTRY
Color Inst. Tool
Dash K L M N P R Code Die No.
No. Nom Nom Nom Nom Nom Nom (Ref.) (Note 2)
06 .312 (7.9) .090 (2.3) .113 (2.9) .250 (6.4) .156 (4.0) .194 (4.9) Yellow WT402
10 .312 (7.9) .124 (3.1) .145 (3.7) .250 (6.4) .187 (4.7) .227 (5.8) Orange WT406
13 .312 (7.9) .149 (3.8) .179 (4.5) .250 (6.4) .225 (5.7) .256 (6.5) Purple WT409
16 .312 (7.9) .175 (4.4) .215 (5.5) .250 (6.4) .261 (6.6) .297 (7.5) Yellow WT411
20 .312 (7.9) .219 (5.6) .250 (6.4) .250 (6.4) .297 (7.5) .335 (8.5) Green WT414
23 .312 (7.9) .250 (6.4) .281 (7.1) .250 (6.4) .327 (8.3) .372 (9.4) Tin WT416
26 .312 (7.9) .275 (7.0) .306 (7.8) .250 (6.4) .375 (9.5) .406 (10.3) Yellow WT440/5451
29 .312 (7.9) .297 (7.5) .335 (8.5) .250 (6.4) .405 (10.3) .453 (11.5) Red WT440/5452
30 .312 (7.9) .312 (7.9) .365 (9.3) .250 (6.4) .425 (10.8) .473 (12.0) Tin WT440/5454
31 .312 (7.9) .375 (9.5) .406 (10.3) .250 (6.4) .500 (12.7) .560 (14.2) Green WT440/5457
32 .600 (15.2) .430 (10.9) .500 (12.7) .440 (11.2) .590 (15.0) .670 (17.0) Red GS590
33 .600 (15.2) .550 (14.0) .620 (15.7) .440 (11.2) .710 (18.0) .790 (20.1) Blue GS710
34 .600 (15.2) .670 (17.0) .750 (19.1) .440 (11.2) .840 (21.3) .920 (23.4) Gray GS840
35 .600 (15.2) .810 (20.6) .880 (22.4) .440 (11.2) 1.010 (25.7) 1.090 (27.7) Brown GS1010
36 .600 (15.2) .920 (23.4) 1.000 (25.4) .440 (11.2) 1.130 (28.7) 1.210 (30.7) Green GS1130
38 .600 (15.2) 1.040 (26.4) 1.120 (28.4) .440 (11.2) 1.250 (31.8) 1.330 (33.8) Pink GS1250
39 .600 (15.2) 1.122 (28.5) 1.192 (30.3) .440 (11.2) 1.332 (33.8) 1.412 (35.9) Orange GS1332
40 .600 (15.2) 1.224 (31.1) 1.294 (32.9) .440 (11.2) 1.440 (36.6) 1.520 (38.6) Purple GS1440
41 .600 (15.2) 1.353 (34.4) 1.423 (36.1) .440 (11.2) 1.562 (39.7) 1.643 (41.7) Yellow GS1563
42 .600 (15.2) 1.425 (36.2) 1.545 (39.2) .440 (11.2) 1.670 (42.4) 1.750 (44.5) Red GS1670
43 .600 (15.2) 1.550 (39.4) 1.670 (42.4) .440 (11.2) 1.795 (45.6) 1.875 (47.6) Blue GS1795
44 .600 (15.2) 1.675 (42.5) 1.795 (45.6) .440 (11.2) 1.920 (48.8) 2.000 (50.8) Gray GS1920
45 .600 (15.2) 1.800 (45.7) 1.920 (48.8) .440 (11.2) 2.045 (51.9) 2.125 (54.0) Brown GS2045
46 .600 (15.2) 1.925 (48.9) 2.045 (51.9) .440 (11.2) 2.170 (55.1) 2.250 (57.2) Green GS2170
47 .600 (15.2) 2.050 (52.1) 2.170 (55.1) .440 (11.2) 2.295 (58.3) 2.375 (60.3) Pink GS2295
48 .600 (15.2) 2.175 (55.2) 2.295 (58.3) .440 (11.2) 2.420 (61.5) 2.500 (63.5) Orange GS2420
49 .600 (15.2) 2.300 (58.4) 2.420 (61.5) .440 (11.2) 2.545 (64.6) 2.625 (66.7) Purple GS2545
50 .600 (15.2) 2.425 (61.6) 2.545 (64.6) .440 (11.2) 2.670 (67.8) 2.750 (69.9) Yellow GS2670
51 .600 (15.2) 2.530 (64.3) 2.670 (67.8) .440 (11.2) 2.795 (71.0) 2.875 (73.0) Red GS2795
52 .600 (15.2) 2.655 (67.4) 2.795 (71.0) .440 (11.2) 2.920 (74.2) 3.000 (76.2) Blue GS2920
53 .600 (15.2) 2.780 (70.6) 2.920 (74.2) .440 (11.2) 3.045 (77.3) 3.125 (79.4) Gray GS3045
54 .600 (15.2) 2.905 (73.8) 3.045 (77.3) .440 (11.2) 3.170 (80.5) 3.250 (82.6) Brown GS3170
